Tugwi Mukosi Dam Design Attributes and Ancillary works
The Tugwi-Mukosi Dam is a concrete-face rockfill dam, with a total height of 90,3 m (296 ft) and a storage capacity of 1.803 billion cubic metres.
What Is a Rockfill Dam?
A rockfill dam is a type of dam that is made from rocks and concrete. It is different than other types of dams because it uses a material called fill instead of water to create its structure. This fill is made from earth, gravel, and rocks that are excavated and then placed in the dam. The dam is then filled with water, and the structure forms as the water levels rise.
Features Of the
Tugwi Mukosi Dam

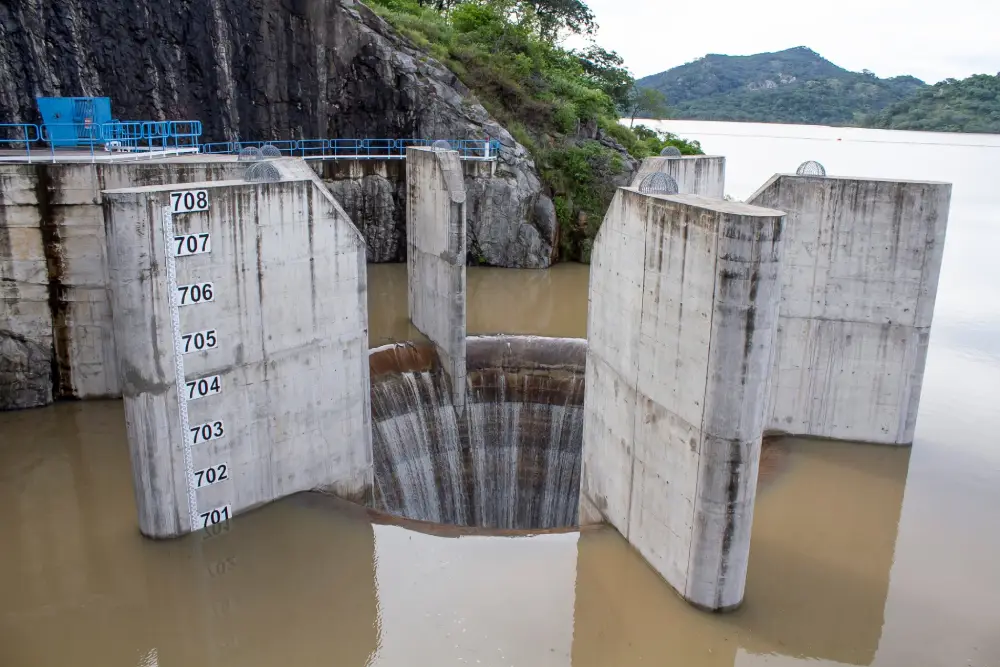

The dam comprises an upstream concrete face and twin drop-inlet structures excavated into the rock of the abutments; inlets serve as the dams’ spillways. These two spillways are located near the left and right abutments and direct water to a concrete-lined outlet tunnel which is 6 metres in diameter and 200m long.
Water is released into a riverbed through 2 metre diameter steel pipelines at a discharge speed of about 1090m3 of water per second. A dedicated plunge pool was introduced by the Salini Impregilo team to increase and guarantee stability and safety of the dam toe. Each intake tower is 35 metres in height, fitted with grilles that direct water to a 6 metre diameter concrete-lined tunnel (350m long) excavated along the left abutment.
Similarly, the outlet is comprised of an upstream intake structure and a pressure tunnel connected to a gate shaft just after the crest of the dam. The tunnel also has a diameter of 6 m.
Figure 10: Pictorial views of gate shaft and outlet pipes

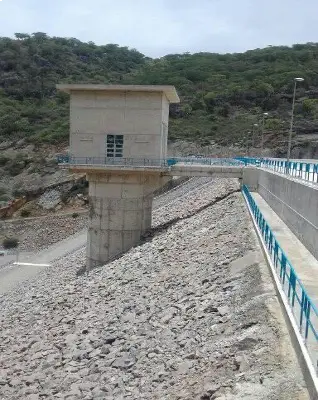

From the gate shaft, 2 by 2 m diameter steel pipes connect through a dry tunnel to the valve
house that is situated downstream of the dam. During the construction of the dam, this outlet tunnel served as a diversion route of the water. (Mavhura E.2020).
5 saddle dams have been constructed on the right bank of the main dam. The saddle dams are earth-fill structures, 20metres tall and 133metres long, with a clay core and a total volume of about 1 120 000 m3. The last dam has an auxiliary spillway.
Tugwi Mukosi Dam Finishes

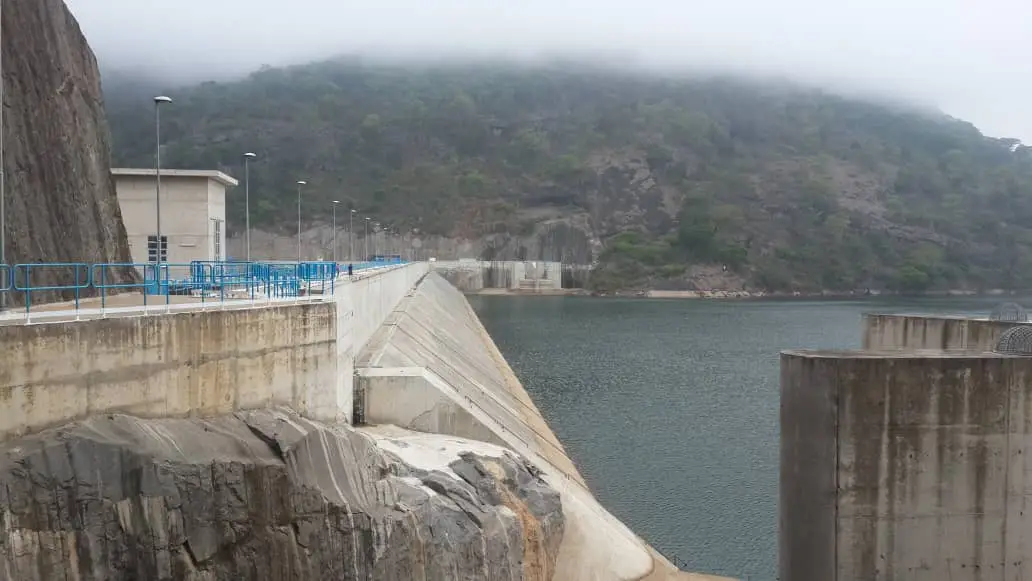

Crest parapet walls that incorporate dam finishes including concrete paving, crest driveways, and handrails have been added to the dam.

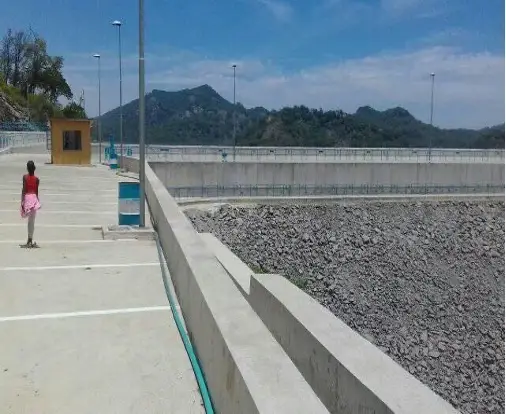

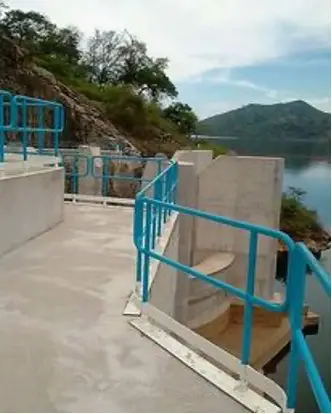

Figure 11: Pictures of handrails and pavements at Tokwe Mukosi Dam.
Materials Used to Complete the Tugwi Mukosi Dam
Materials used for project completion and some additional features are provided in the table below.
| Feature | Specifications |
|---|---|
| Main Dam Excavations | 1,390.505 ㎥ |
| Main Dam Backfill | 2,927,624 ㎥ |
| Saddle Dam Excavations | 663,300 ㎥ |
| Saddle Dam Backfill | 1,120,000 ㎥ |
| Concrete Materials | 95,000 ㎥ |
| Iron & Steel Materials | 4,500 tons |
| Waterproofing Layer | 8,542 m |
| Embankment Volume | 2,437,00 ㎥ |
| Flood Design | 1 in 2000 years |
According to Zimbabwe National Water Authority (ZINWA) construction standards, the Tugwi-Mukosi Dam was designed to have:
- Probable maximum flood (PMF) with a return period of 10,000 years. This means that floodwaters would be averaging 10,290 ㎥/sec.
- Flood return period of 2,000 years (floodwaters of 7,630 ㎥/sec).
- An emergency spillway 150 m long at level 706.44 m. The spillway would discharge the floodwaters above 8,000 ㎥/sec and prevent overtopping of the dam.
- A parapet wall on the dam crest built to level 708.3 m as an additional safety measure against overtopping of the embankment.
- The design of the Tugwi-Mukosi Dam was also meant to avoid flooding disasters.
